Snagging Wall Protection Without Damaging Finished Surfaces
Snagging should compare installed wall protection with its approved detail while protecting the finished surface. Record defects consistently and distinguish appearance issues from attachment or assembly concerns.
Selection considerations
Walk the route against the location schedule. Check alignment, intended coverage, corners, caps and clearances at openings. Use a consistent photograph position and identify each observation by room or elevation rather than submitting an unlocated close-up.
Follow the agreed inspection method for the selected system. Do not pry covers off, apply impact loads or use aggressive marking tools as an improvised test. Where a fixing or backing concern requires closer examination, arrange the permitted access with the installer and supplier.
Assign a responsible party and close-out evidence for each item. After correction, review the affected assembly and nearby finishes, not only the original blemish. Keep the accepted completion photographs in the maintenance record so later damage can be distinguished from an unresolved installation issue.
Before you specify or order
- Inspect against location schedules
- Record defects with references
- Use permitted inspection methods
- Retain close-out evidence
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

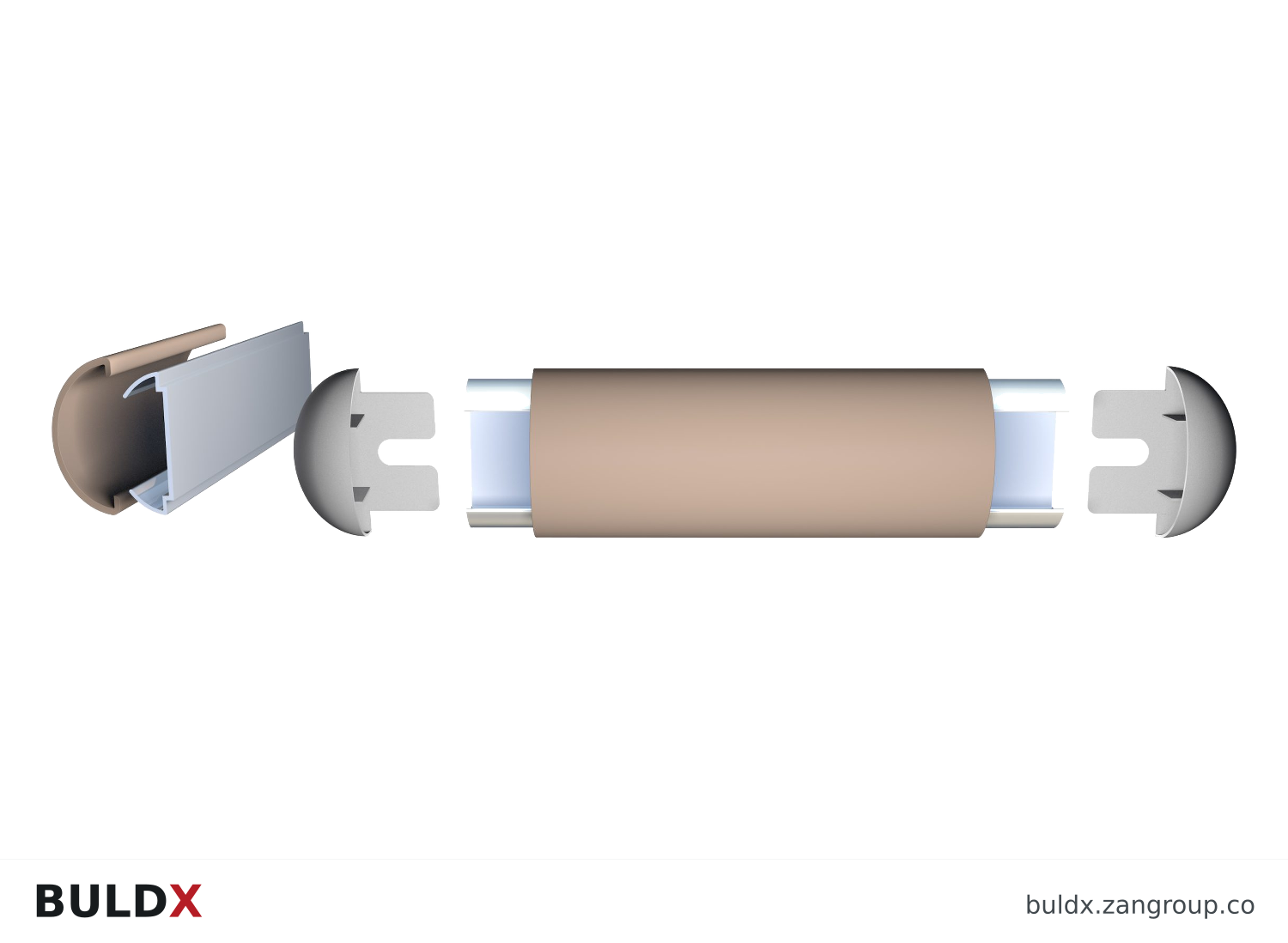

ZCR-50DK · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
ZCR-50DKSlim Crash RailCrash Rails |
|
BDX-WG-VA-20025200 × 25 mm Wall GuardCrash Rails |
|
ZCR-100DKCompact Crash RailCrash Rails |
|
Common question
Is a straight-looking rail enough to accept the work?
No. Check the complete assembly, coverage, terminations and documented attachment inspection as well as appearance.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
