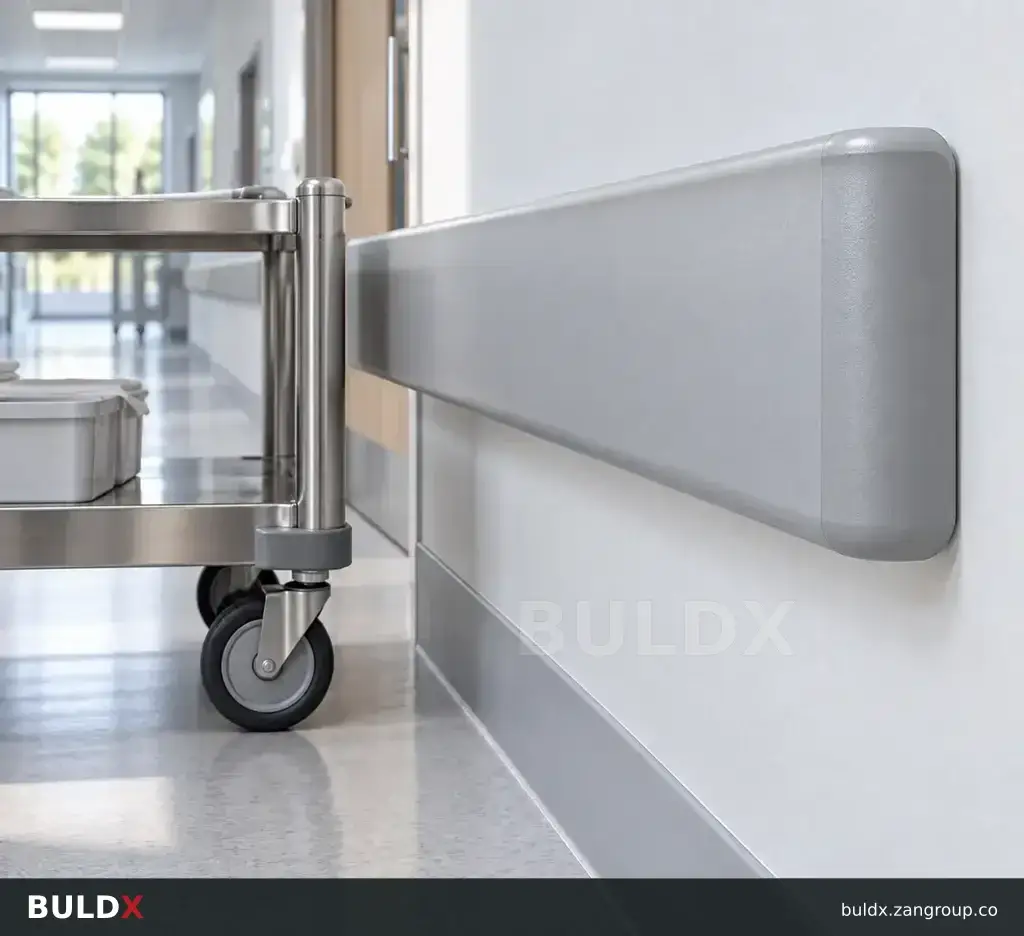

Crash rails: match protection height to trolley impact
Select a crash rail around the equipment that actually contacts the wall. Rail width and projection matter, but a correctly sized rail installed above or below the impact zone can still leave the finish exposed.
Selection considerations
Observe loaded trolleys, beds, cleaning machines and service carts at corners and door approaches. Note the contact height and the parts that protrude furthest. Different departments may need different rail arrangements even where the corridor appearance is identical.
The BULDX range includes sections with different widths and wall projections. Compare these as separate measurements, then check backing and replacement-cover arrangements. Review attachment positions against the partition reinforcement. Catalogue descriptions are a starting point for selection; they do not establish the impact capacity of a complete wall assembly.
Before you specify or order
- Survey actual equipment contact
- Compare projection separately from width
- Coordinate backing with the partition contractor
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.
BDX-WG-VA-20025 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.| Product and code | Selected catalogue fields |
|---|---|
BDX-WG-VA-20025200 × 25 mm Wall GuardCrash Rails |
|
ZCR-100DKCompact Crash RailCrash Rails |
|
ZCR-150DKMedium Crash RailCrash Rails |
|
Common question
Does a wider rail always protect better?
Only if its position and attachment suit the impact zone. Width alone cannot establish the performance of the installed system.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
