Coordinating Parking Accessories with Bay Markings
Parking accessory setting-out should use the same approved references as the bay markings. Separate layouts can leave wheel stops or protection items associated with the wrong stall even when both trades follow their own drawings.
Selection considerations
Compare bay numbers, centre lines, dimensions and vehicle assumptions before work begins. Confirm which markings are permanent and which are temporary construction references. If the parking layout has been revised, withdraw the outdated setting-out information from both work packages.
Coordinate the selected accessory positions with doors, columns and the approved pedestrian route. Keep fixing details attached to the actual substrate review. A painted line should not be treated as permission to drill without checking the location and relevant concealed services.
Inspect the completed arrangement against the coordinated plan before opening the area. Record the accessory code and bay location together for maintenance. Where markings are repainted later, retain the accepted geometry rather than using a worn line as the only layout reference.
Before you specify or order
- Use one approved bay layout
- Confirm permanent setting-out references
- Review route and fixing interfaces
- Record codes by bay
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.
BDX-WS-RB-1830 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|

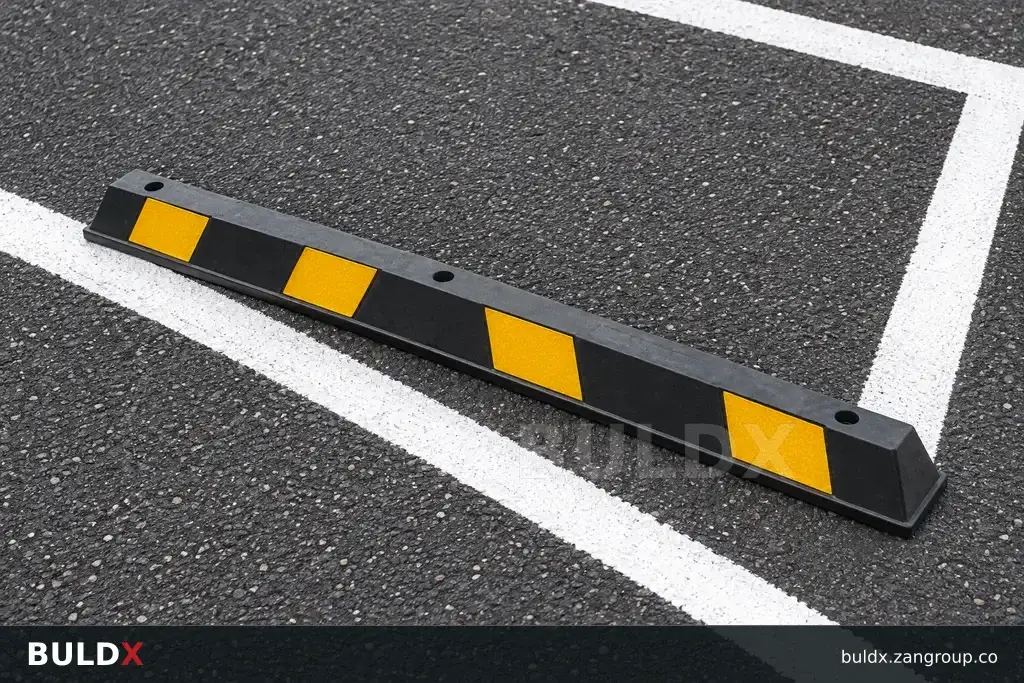

BDX-WS-RB-18301830 mm Reflective Rubber Wheel StopWheel Stops |
|
Common question
Can installers position accessories from the nearest painted line alone?
Not reliably. Check the approved layout, reference dimensions and actual site conditions.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
