Fixing wall protection to lightweight partitions

BULDX product guides2 min read

For a lightweight partition, the wall protection fixing is part of the wall assembly. The profile alone cannot compensate for missing reinforcement behind the board.

AI-generated application context: Fixing wall protection to lightweight partitions
APPLICATION ILLUSTRATIONAI-generated application illustration for this guide. Not a completed BULDX project or an installation drawing.

Selection considerations

Coordinate mounting lines with studs, backing plates and reinforcement before closing the partition. Draw the anchor positions relative to profile brackets and joints. Where fixing spacing appears in a product record, check that the proposed wall construction can support that arrangement.

Retrofit work needs a survey of the existing wall rather than a generic anchor selection. Confirm concealed services and use the approved fixing design for the substrate. Keep a record of reinforcement locations for future replacement. A continuous rail can hide weak attachment points, so installation inspection should happen before covers make the fixings difficult to see.

Before you specify or order

  • Coordinate bracket and backing positions
  • Survey concealed services
  • Inspect fixings before covers are fitted

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

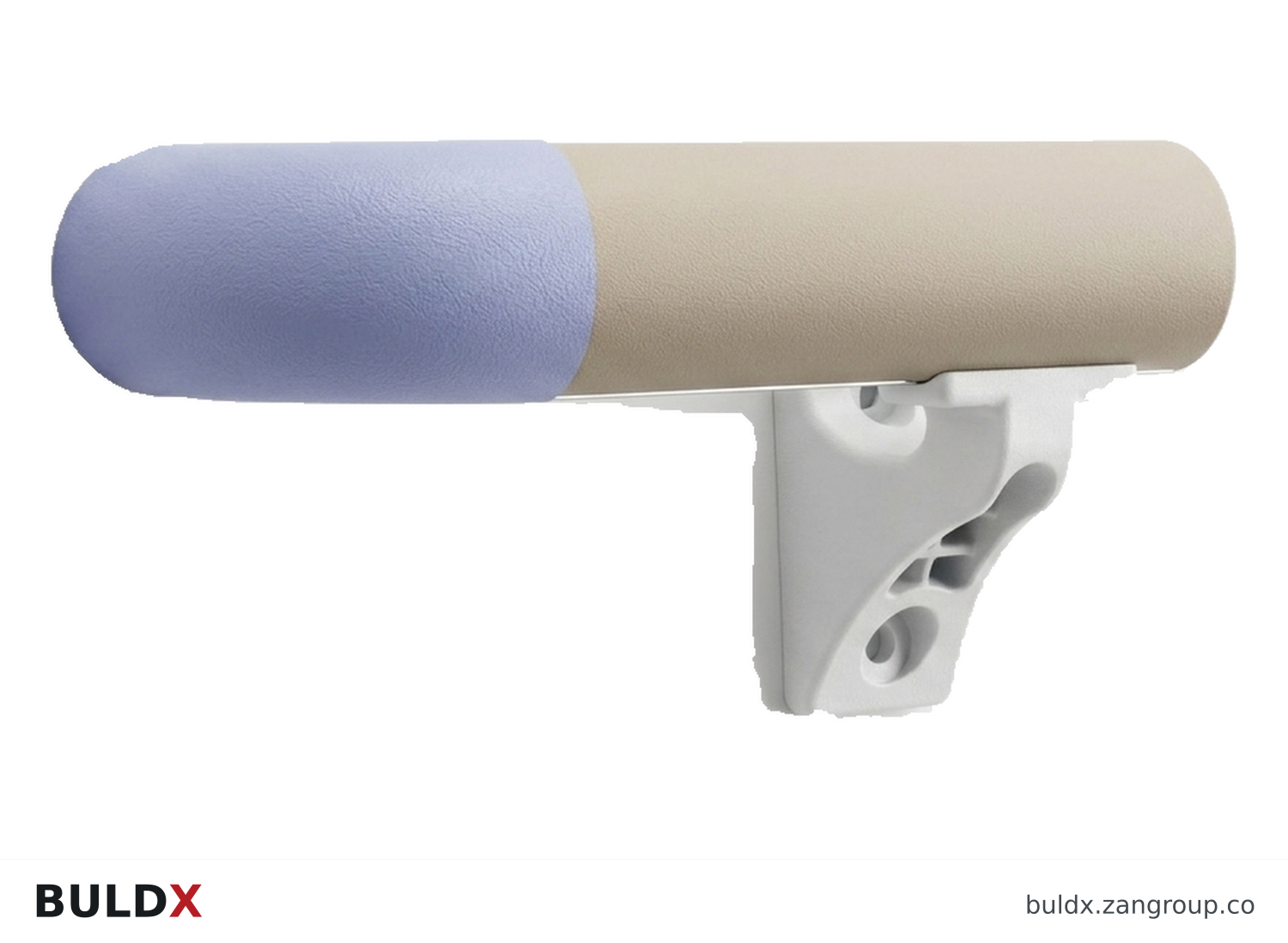

BULDX catalogue illustration of Circular Corridor Handrail, code ZHR-50KP
CATALOGUE REFERENCEZHR-50KP · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.
Product and codeSelected catalogue fields
ZHR-50KPCircular Corridor HandrailHandrails
Depth
85 mm
Length
4 m
Core
Aluminium
Fixing interval
50-75 cm
BDX-WG-VA-20025200 × 25 mm Wall GuardCrash Rails
Width
200 mm
Profile length
4 m
Impact insert
Rubber gasket
Installation
Wall plugs and screws suitable for the substrate
ZHR-142DKCombined Handrail & Wall GuardHandrails
Width
142 mm
Depth
80 mm
Length
4 m
Core
Continuous aluminium
Browse the complete Interior Protection catalogue

Common question

Can the same wall plug be used everywhere?

No. Masonry, concrete and board partitions require substrate-specific fixing arrangements.

References and scope

Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
