Reviewing Handrail Returns at Corridor Ends
Handrail returns need coordination at corridor ends, door openings and changes in wall geometry. A straight rail schedule can miss the end condition that people encounter as they approach a doorway or turn a corner.
Selection considerations
Mark the intended start and end points on each elevation. Review nearby signs, doors, service panels and equipment routes. Keep the approved accessibility layout available during this review; a handrail product image does not establish the required clearances or placement for a specific building.
Ask for the selected system's compatible end and return components. Distinguish a decorative cap from a return arrangement intended for the rail assembly. Check that the backing and attachment continue to suit the wall where the end condition is formed.
Use a sample to review the visible shape and its interface with adjacent finishes. Record the accepted component list and location on the schedule. During inspection, compare the installed end condition with that detail rather than judging only whether the straight rail looks level.
Before you specify or order
- Mark all start and end points
- Coordinate adjacent openings and signs
- Identify compatible return components
- Inspect the accepted end detail
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

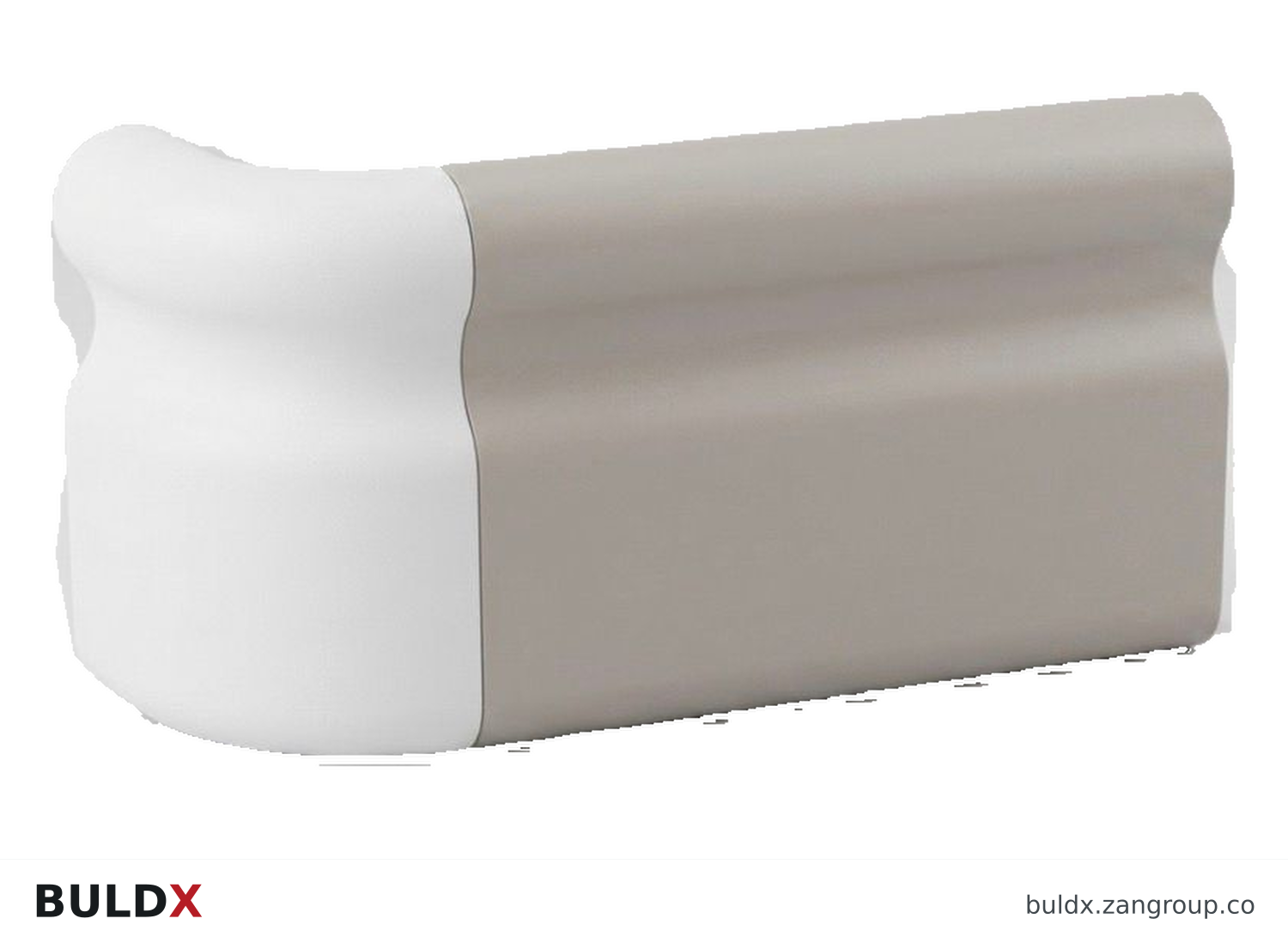

ZHR-152DD · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
ZHR-152DDHeavy-Duty Handrail & Wall GuardHandrails |
|
ZHR-50KPCircular Corridor HandrailHandrails |
|
ZHR-142DKCombined Handrail & Wall GuardHandrails |
|
Common question
Can a cap serve as every type of handrail return?
No. Confirm the function and compatibility of the selected end component with the approved rail arrangement.
