Coordinating Cladding Around Window Reveals
Window reveals need coordination between the cladding layout and the complete opening detail. A neat panel edge should not conceal an unresolved sealing, support or access requirement at the window.
Selection considerations
Draw the head, jambs and sill with the actual wall build-up and window arrangement. Identify visible returns, trims and changes in depth. Review each condition separately because a detail accepted at the jamb may not explain the sill or head interface.
Confirm which products provide cladding, support and water or air control in the approved design. Ask the relevant suppliers to resolve compatible connections and installation sequence. Do not treat a panel or collection image as a complete tested opening assembly.
Approve a representative reveal mockup where required and record its scope. Inspect concealed interfaces before closing the reveal. Keep the profile or panel codes with the as-built opening details so future window or cladding repairs can be reviewed against the installed arrangement.
Before you specify or order
- Review head, jamb and sill separately
- Assign each layer's function
- Coordinate compatible connections
- Retain concealed-work records
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.
BDX-WP-ARYA-35232 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|

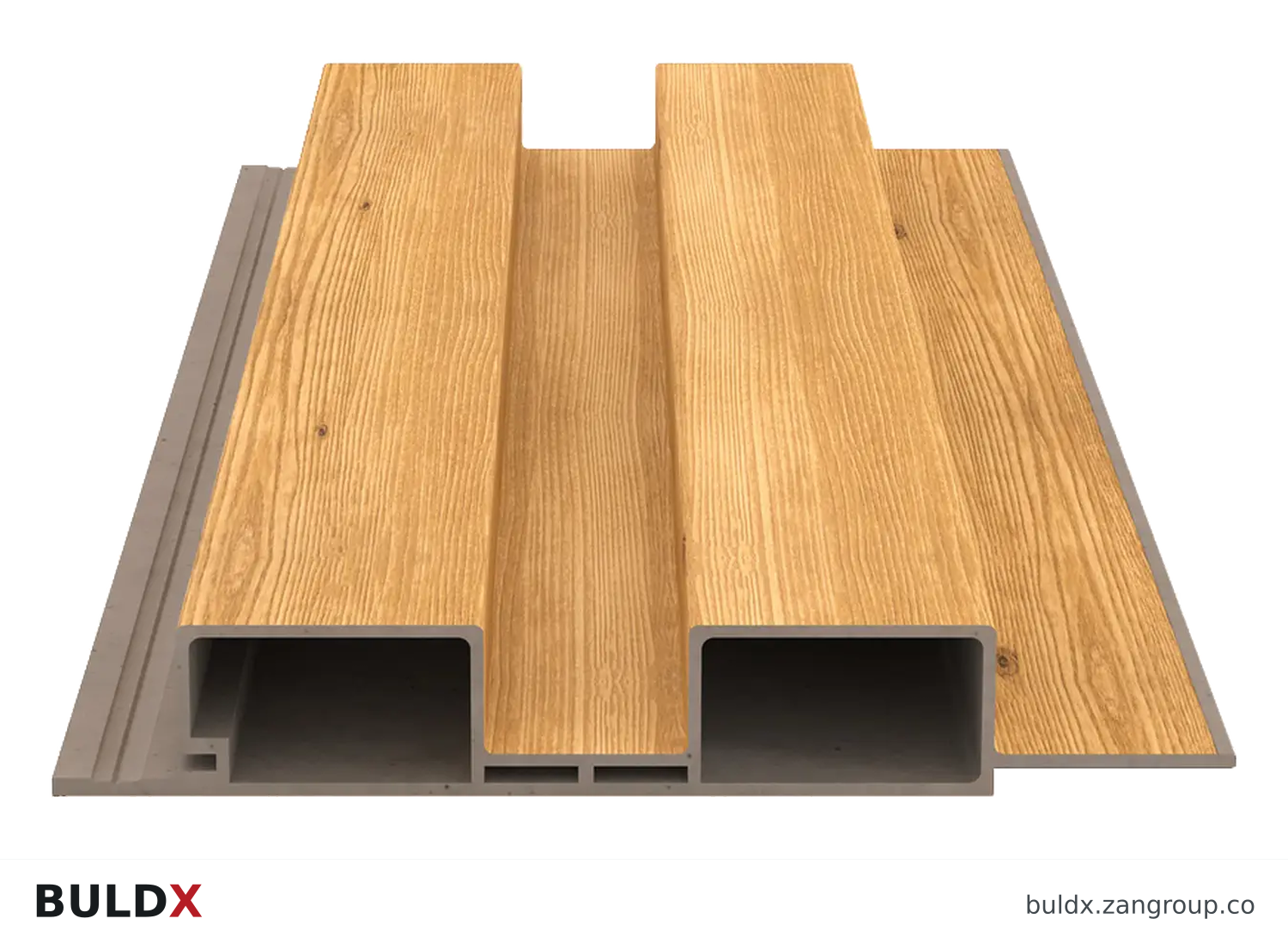

BDX-WP-ARYA-35232Arya Wall Panel 35 × 232Wall Panels |
|
