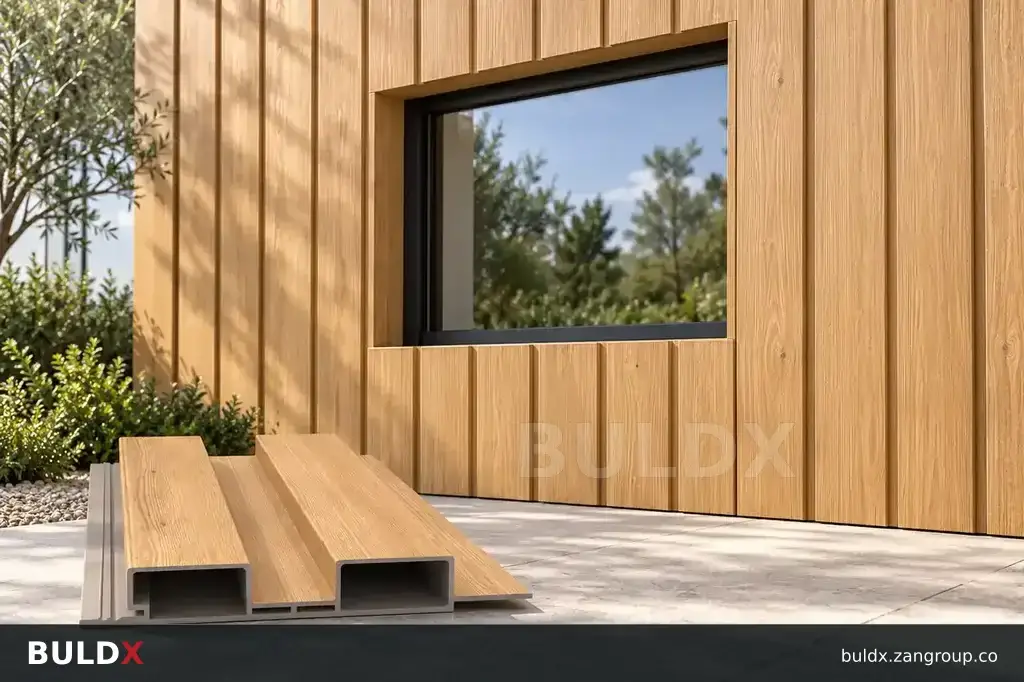

Wall cladding panel setting-out around openings
Set out wall panels around doors, windows, services and exposed edges before ordering. The overall wall area does not reveal the cutting pattern or joint arrangement.
Selection considerations
Prepare elevations showing full panels, cut panels and the intended visual alignment. Check whether the selected section has a preferred direction or connection sequence. Avoid narrow strips and unresolved edges by reviewing the layout early.
Coordinate substrate condition, support and access panels. Include compatible edge and corner profiles in quantities. Obtain the selected panel's dimensions and installation instructions where the catalogue shows a family rather than an individual size. Keep the approved layout with the product code schedule through delivery and installation.
Before you specify or order
- Draw full and cut panel positions
- Preserve service access
- Include compatible edge pieces
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.
BDX-WP-ARYA-35232 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.| Product and code | Selected catalogue fields |
|---|---|
BDX-WP-ARYA-35232Arya Wall Panel 35 × 232Wall Panels |
|
BDX-WP-ELIKS-40125Eliks Wall Panel 40 × 125Wall Panels |
|
BDX-WP-NAVI-18141Navi Wall Panel 18 × 141Wall Panels |
|
Common question
Is a square-metre quantity enough to fabricate panels?
Not usually. Dimensions, cutting layout and edge details also need agreement.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
