Building a Change-of-Plane Waterproofing Mockup
A change-of-plane mockup should demonstrate the complete corner arrangement and installation sequence. It can reveal missing pieces or uncertain interfaces before the same condition is repeated across bathrooms, terraces or roof upstands.
Selection considerations

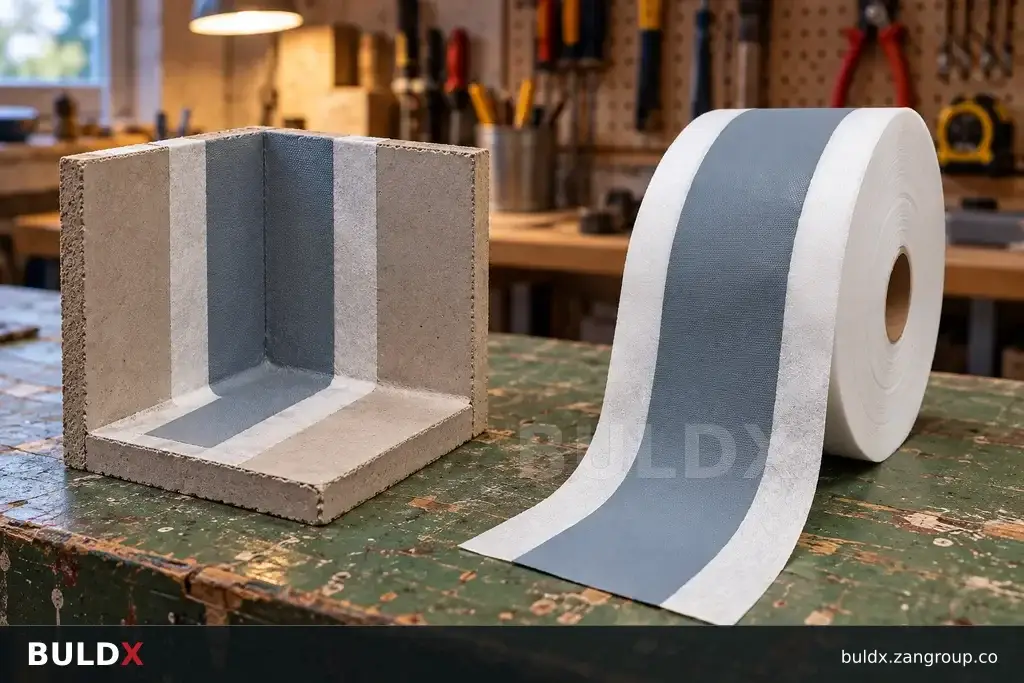

Select representative corners from the drawings, including different adjoining substrates or finish layers. Use the selected system's actual components and preparation method. A loose tape bent around a cardboard angle does not demonstrate the complete project assembly.
Review terminations, overlaps and access for the proposed method against the supplier's detail. Keep movement and water-control requirements visible in the review. Where several trades meet at the corner, identify which party prepares the substrate and which party accepts each stage.
Retain the accepted mockup and record the conditions it covers. Any required testing should follow the project's agreed procedure and be documented separately. Use the mockup during inspections, but do not present it as blanket approval of different corners or substituted materials.
Before you specify or order
- Select representative corner interfaces
- Use the actual system components
- Agree the installation sequence
- Record the approval scope
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.
BDX-WP-FLEECE · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|

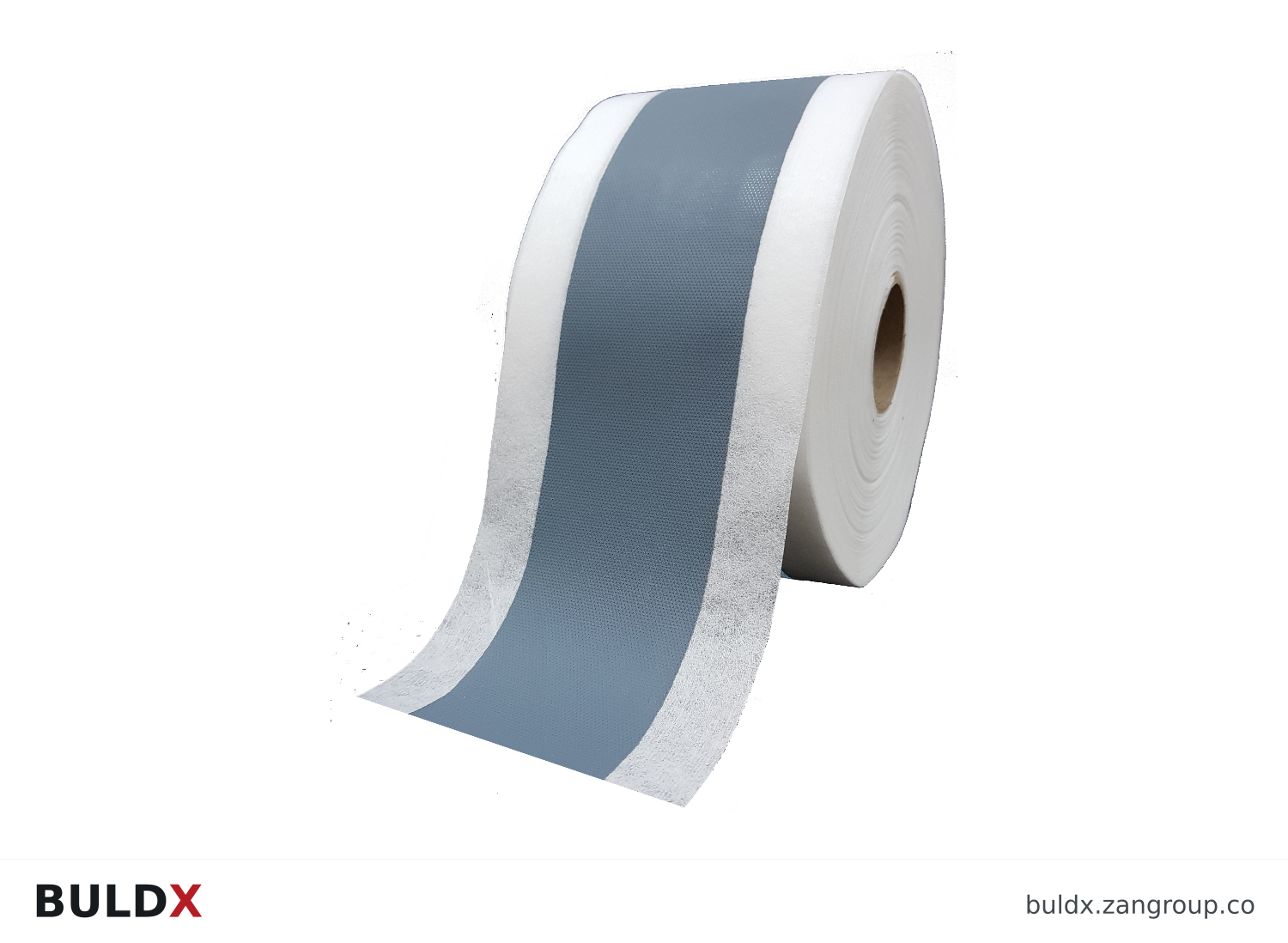

BDX-WP-FLEECEFleece Waterproofing Corner TapeCorner Sealing Tapes |
|
BDX-WP-TAPEElastic Waterproofing Corner TapeCorner Sealing Tapes |
|
Common question
Can one mockup approve every change of plane?
Only within its documented scope. Different substrates, components or geometries may require further review.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
