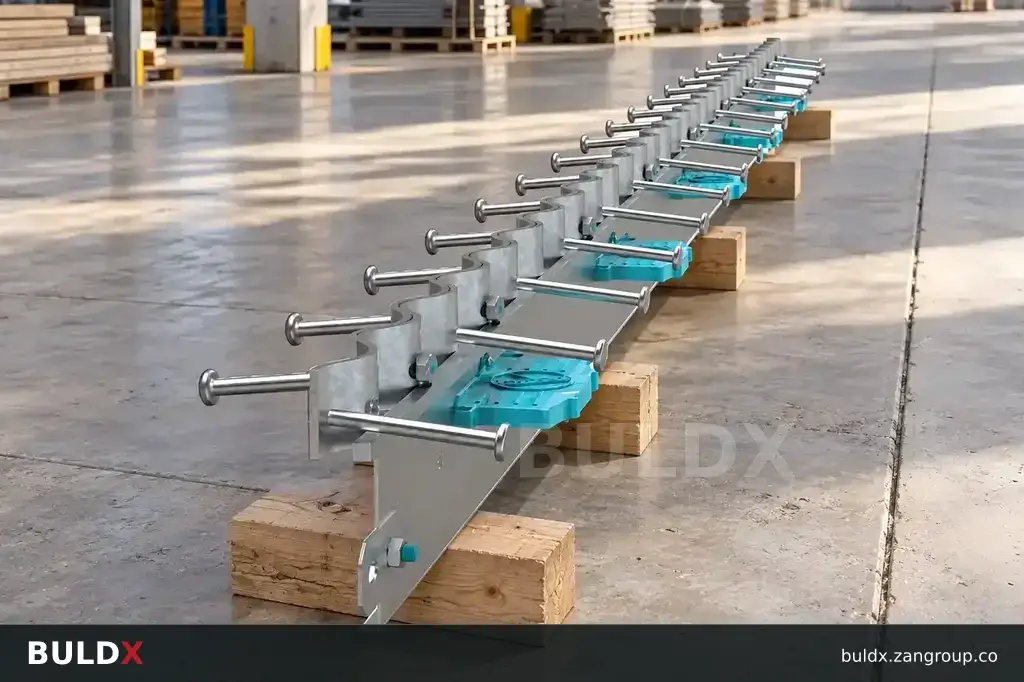

Sinusoidal floor joints: compare geometry and application
A sinusoidal joint introduces a shaped crossing line, but its suitability still depends on the slab detail, wheel traffic and the selected assembly. The wavy appearance alone does not establish a capacity.
Selection considerations
Compare the section height, edge geometry and intended joint function. A sinusoidal isolation product and a sinusoidal crack-control product should remain separate schedule items. Ask for the relevant performance information for the actual wheel and load conditions.
Review crossings at turning areas and interfaces with straight joint runs. Confirm how ends and intersections are detailed. During installation, check alignment and final levels before the floor finish is accepted. A smooth-looking top view can conceal a mismatch in height or supporting construction.
Before you specify or order
- Confirm crack-control or isolation function
- Review crossing conditions
- Detail intersections and ends
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

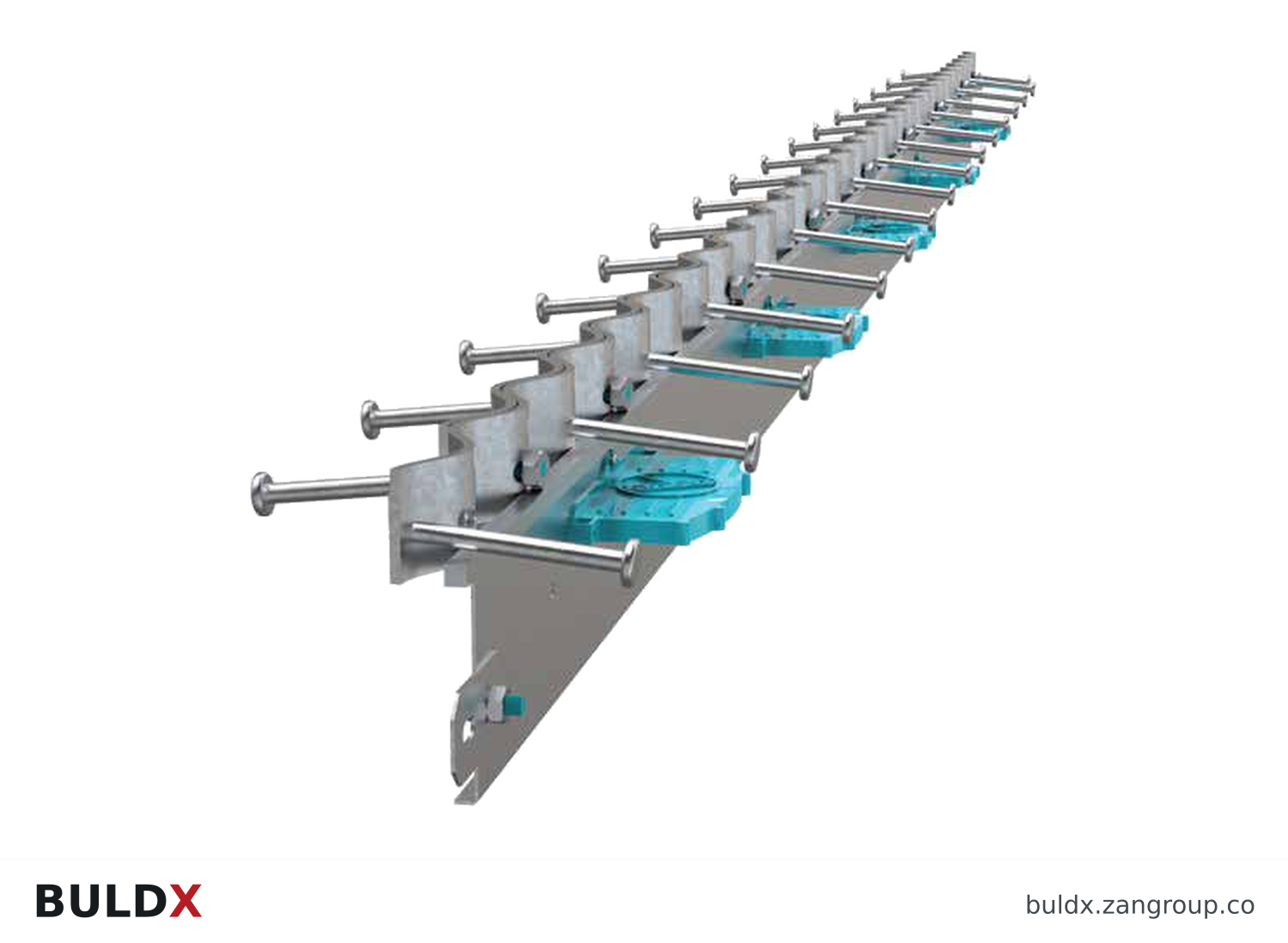

BDX-SJ-SIN-115 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.| Product and code | Selected catalogue fields |
|---|---|
BDX-SJ-SIN-115115 mm Sinusoidal Slab JointSinusoidal Crack-Control Joints |
|
BDX-SJ-SIN-ISO-185185 mm Sinusoidal Isolation JointSinusoidal Isolation Joints |
|
BDX-SJ-SIN-140140 mm Sinusoidal Slab JointSinusoidal Crack-Control Joints |
|
Common question
Does sinusoidal geometry guarantee smooth traffic?
No. The complete installed joint, levels, wheel conditions and maintenance affect the crossing.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
