Setting the Orientation of Entrance Mat Strips
Mat strip orientation should be decided on a plan and checked with a physical sample. It affects the visible layout and the way the assembly relates to the entrance route, without establishing performance from appearance alone.
Selection considerations
Mark the principal approaches, doors and adjacent floor pattern. Identify whether the selected system has a required orientation or panel arrangement in its documentation. Distinguish an architectural preference from a supplier requirement so the installer knows which conditions are fixed.

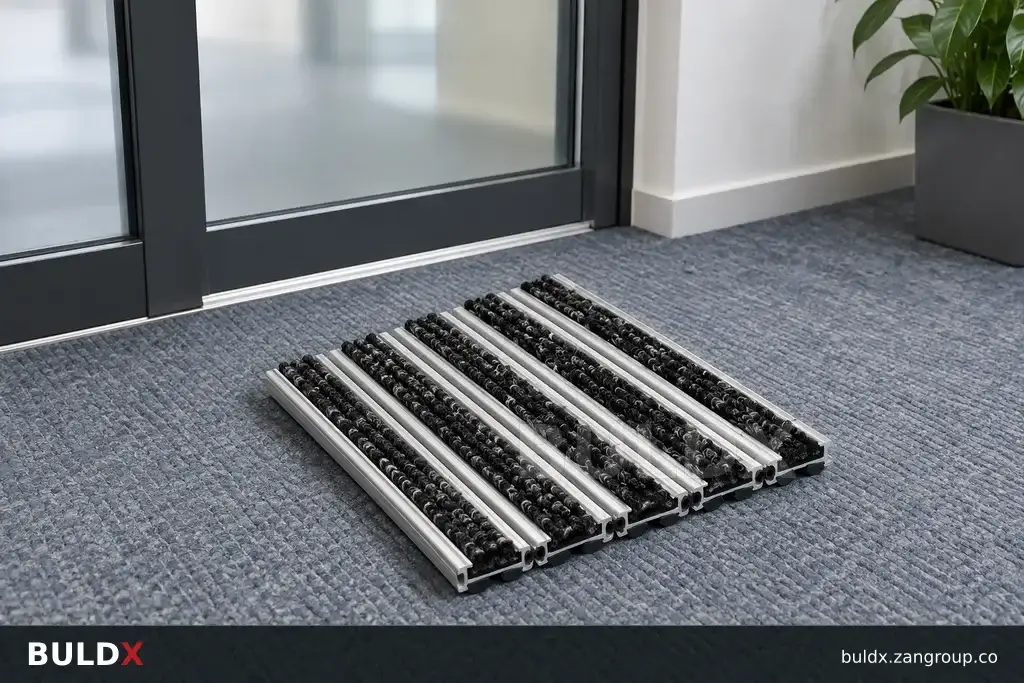

Place a sample at the intended orientation and review frame positions and panel seams. A small swatch rotated on a desk may not reveal how a full-width assembly looks from the entry. Where there are several approaches, record the accepted layout rather than making separate assumptions for each door.
Keep orientation arrows and location references on the approved manufacturing drawing. At delivery and installation, use the same reference to identify panels and avoid accidental rotation. Reopen the layout review if the door arrangement or surrounding floor pattern changes.
Before you specify or order
- Mark entrance approaches
- Confirm supplier orientation requirements
- Review a physical sample
- Keep orientation on manufacturing drawings
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.
BDX-MAT-IN-C-40-13-5-16-TX-J-TX · Exact assembly photograph and section from its own row in the original technical sheet.| Product and code | Selected catalogue fields |
|---|---|
BDX-MAT-IN-C-40-13-5-16-TX-J-TXIndoor Aluminium Entrance Mat · Textile + rubber connector + textile · 16 mmIndoor Entrance Mats |
|
BDX-EM-S25Textile & Scraper Entrance MatIndoor Entrance Mats |
|
BDX-EM-F25Textile & Strip-Brush Entrance MatIndoor Entrance Mats |
|
Common question
Can the installer rotate a custom mat to suit the floor pattern?
Only if the approved layout and selected system permit it. Check panel, frame and use requirements before changing orientation.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
