Coordinating Finishing Profiles at Wet and Dry Boundaries
A finishing profile at a wet-to-dry boundary needs coordination with levels, edge support and waterproofing. The visible trim should not be treated as proof that the boundary itself is watertight.
Selection considerations
Draw the adjacent floor build-ups and identify the intended water-control detail. Show the waterproofing termination and any drain, threshold or change in level that belongs to the approved design. Keep the finishing profile's role distinct from the membrane or sealing system.
Review the assembly with the finish and waterproofing contractors. Confirm compatible materials and the permitted installation sequence. If the trim is fixed near a waterproof layer, resolve the fixing interface in the coordinated detail rather than allowing an unreviewed penetration on site.
Use a small mockup where the junction is difficult to inspect after completion. Record which elements are accepted for appearance and which require separate testing or inspection. Keep the selected profile code on the detail so a visual substitution does not silently change the interface.
Before you specify or order
- Draw both floor build-ups
- Identify the waterproofing boundary
- Coordinate fixing and sequence
- Separate appearance from water-control acceptance
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

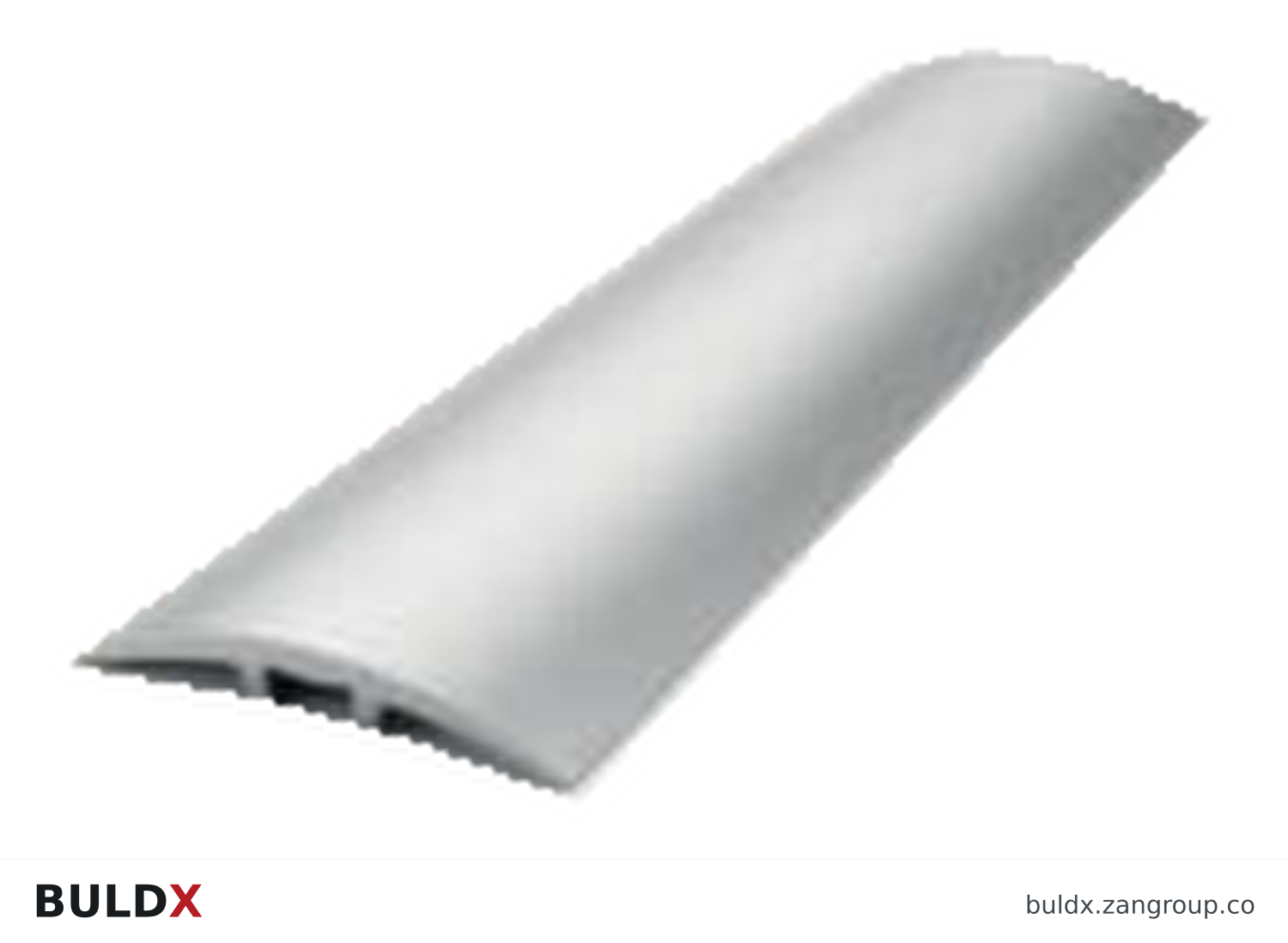

BDX-TR-BEG-3005 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
BDX-TR-BEG-3005Concealed screw Transition Profile · 30 × 5 mmTransition Profiles |
|
BDX-TR-BEC-2503Adhesive Transition Profile · 25 × 3 mmTransition Profiles |
|
BDX-TR-BEC-3004Adhesive Transition Profile · 30 × 4 mmTransition Profiles |
|
Common question
Can an aluminium transition profile provide waterproofing by itself?
Only where the specific system documentation establishes that function. A finishing profile should not be assumed to replace the approved waterproofing detail.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
